Dify mcp 链路打通调整

发表于

Dify mcp 链路打通调整

参考文档：

https://github.com/langgenius/dify/issues/28224
https://www.youtube.com/watch?v=kLKn3_tj70s

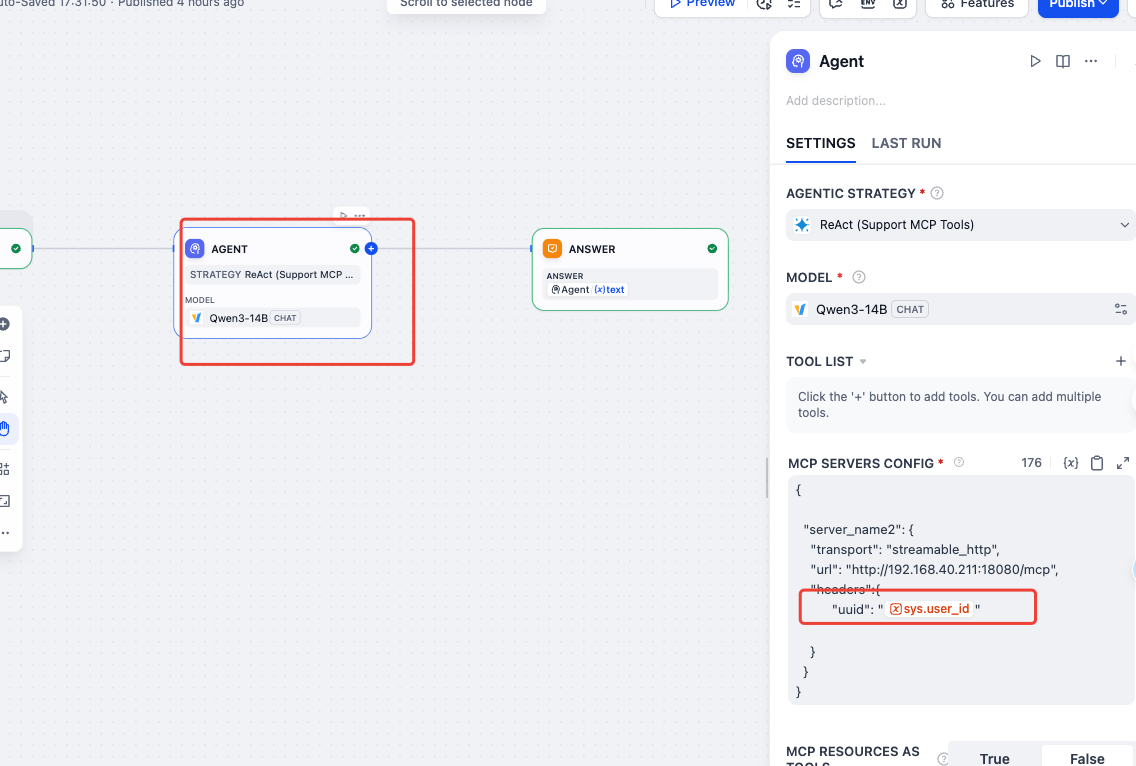

dify应用的集成

通过获取登录后接口返回的 user_uuid，进行编码，编码为符合dify要求的格式

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
user:{"user_uuid":"c23afa76-c1d0-4980-ab00-9c041409b034"}


async function compressAndEncodeBase64(input: string) {
  const uint8Array = (new TextEncoder()).encode(input);
  const compressedStream = new Response(
    new Blob([uint8Array]).stream().pipeThrough(new CompressionStream("gzip"))
  ).arrayBuffer();
  const compressedUint8Array = new Uint8Array(await compressedStream);
  return btoa(String.fromCharCode(...compressedUint8Array));
}

//编码为符合dify要求的格式
compressAndEncodeBase64('c23afa76-c1d0-4980-ab00-9c041409b034', then(code) => {
    console.log(code);
})


//根据上一步生成的code,拼接最终的url参数 sys.user_id
https://xxxxxx:8080/chatbot/DpIAYCqQAtgSpHSc?sys.user_id=H4sIAAAAAAAAE0s2Mk5MSzQ30002TDHQNbG0MNBNTDIw0LVMNjAxNDGwTDIwNgEA0UXx2iQAAAA=


参考文档：

https://github.com/langgenius/dify/pull/27524
https://github.com/langgenius/dify/issues/27468

链路打通的最新抓包文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
uuid: c23afa76-c1d0-4980-ab00-9c041409b034
POST /mcp HTTP/1.1
Host: 192.168.40.211:18080
Accept-Encoding: gzip, deflate
Connection: keep-alive
User-Agent: python-httpx/0.27.2
uuid: c23afa76-c1d0-4980-ab00-9c041409b034
Content-Type: application/json
Accept: application/json, text/event-stream
Content-Length: 190

{"jsonrpc": "2.0", "id": 0, "method": "initialize", "params": {"protocolVersion": "2024-11-05", "capabilities": {}, "clientInfo": {"name": "MCP Streamable HTTP Client", "version": "1.0.0"}}}
HTTP/1.1 200 OK
Server: njet/4.0.0.0
Date: Wed, 10 Dec 2025 06:27:21 GMT
Content-Type: application/json
Connection: keep-alive
Content-Length: 277
Mcp-Session-Id: aTkSyQiJwOoCAAB9

{"jsonrpc":"2.0","result":{"protocolVersion":"2024-11-05","serverInfo":{"name":"lua-resty-mcp","version":"2.0"},"capabilities":{"completions":{},"prompts":{"listChanged":true},"logging":{},"tools":{"listChanged":true},"resources":{"listChanged":true,"subscribe":true}}},"id":0}
POST /mcp HTTP/1.1
Host: 192.168.40.211:18080
Accept-Encoding: gzip, deflate
Connection: keep-alive
User-Agent: python-httpx/0.27.2
uuid: c23afa76-c1d0-4980-ab00-9c041409b034
Content-Type: application/json
Accept: application/json, text/event-stream
Mcp-Session-Id: aTkSyQiJwOoCAAB9
Content-Length: 71

{"jsonrpc": "2.0", "method": "notifications/initialized", "params": {}}
HTTP/1.1 202 Accepted
Server: njet/4.0.0.0
Date: Wed, 10 Dec 2025 06:27:21 GMT
Content-Type: text/plain
Transfer-Encoding: chunked
Connection: keep-alive


POST /mcp HTTP/1.1
Host: 192.168.40.211:18080
Accept-Encoding: gzip, deflate
Connection: keep-alive
User-Agent: python-httpx/0.27.2
uuid: c23afa76-c1d0-4980-ab00-9c041409b034
Content-Type: application/json
Accept: application/json, text/event-stream
Mcp-Session-Id: aTkSyQiJwOoCAAB9
Content-Length: 65

{"jsonrpc": "2.0", "id": 1, "method": "tools/list", "params": {}}
HTTP/1.1 200 OK
Server: njet/4.0.0.0
Date: Wed, 10 Dec 2025 06:27:21 GMT
Content-Type: text/event-stream
Transfer-Encoding: chunked
Connection: keep-alive
Cache-Control: no-store, no-transform
Connection: keep-alive

data:{"jsonrpc":"2.0","result":{"tools":[{"name":"echo","inputSchema":{"required":["message"],"type":"object","properties":{"message":{"type":"string"}}},"description":"Echo a message as a tool"},{"name":"exp","inputSchema":{"required":["inputA","oper","inputB"],"type":"object","properties":{"inputB":{"type":"number"},"oper":{"type":"string"},"inputA":{"type":"number"}}},"description":"a tool to calculate math expressions, like 1+1=?"}]},"id":1}


POST /mcp HTTP/1.1
Host: 192.168.40.211:18080
Accept-Encoding: gzip, deflate
Connection: keep-alive
User-Agent: python-httpx/0.27.2
uuid: c23afa76-c1d0-4980-ab00-9c041409b034
Content-Type: application/json
Accept: application/json, text/event-stream
Mcp-Session-Id: aTkSyQiJwOoCAAB9
Content-Length: 111

{"jsonrpc": "2.0", "id": 2, "method": "tools/call", "params": {"name": "echo", "arguments": {"message": "aa"}}}
HTTP/1.1 200 OK
Server: njet/4.0.0.0
Date: Wed, 10 Dec 2025 06:27:24 GMT
Content-Type: text/event-stream
Transfer-Encoding: chunked
Connection: keep-alive
Cache-Control: no-store, no-transform
Connection: keep-alive

data:{"jsonrpc":"2.0","result":{"content":[{"text":"Tool echo: aa","type":"text"}]},"id":2}


POST /mcp HTTP/1.1
Host: 192.168.40.211:18080
Accept-Encoding: gzip, deflate
Connection: keep-alive
User-Agent: python-httpx/0.27.2
uuid: c23afa76-c1d0-4980-ab00-9c041409b034
Content-Type: application/json
Accept: application/json, text/event-stream
Mcp-Session-Id: aTkSyQiJwOoCAAB9
Content-Length: 111

{"jsonrpc": "2.0", "id": 3, "method": "tools/call", "params": {"name": "echo", "arguments": {"message": "aa"}}}
HTTP/1.1 200 OK
Server: njet/4.0.0.0
Date: Wed, 10 Dec 2025 06:27:27 GMT
Content-Type: text/event-stream
Transfer-Encoding: chunked
Connection: keep-alive
Cache-Control: no-store, no-transform
Connection: keep-alive

data:{"jsonrpc":"2.0","result":{"content":[{"text":"Tool echo: aa","type":"text"}]},"id":3}


POST /mcp HTTP/1.1
Host: 192.168.40.211:18080
Accept-Encoding: gzip, deflate
Connection: keep-alive
User-Agent: python-httpx/0.27.2
uuid: c23afa76-c1d0-4980-ab00-9c041409b034
Content-Type: application/json
Accept: application/json, text/event-stream
Mcp-Session-Id: aTkSyQiJwOoCAAB9
Content-Length: 111

{"jsonrpc": "2.0", "id": 4, "method": "tools/call", "params": {"name": "echo", "arguments": {"message": "aa"}}}
HTTP/1.1 200 OK
Server: njet/4.0.0.0
Date: Wed, 10 Dec 2025 06:27:30 GMT
Content-Type: text/event-stream
Transfer-Encoding: chunked
Connection: keep-alive
Cache-Control: no-store, no-transform
Connection: keep-alive

data:{"jsonrpc":"2.0","result":{"content":[{"text":"Tool echo: aa","type":"text"}]},"id":4}


POST /mcp HTTP/1.1
Host: 192.168.40.211:18080
Accept-Encoding: gzip, deflate
Connection: keep-alive
User-Agent: python-httpx/0.27.2
uuid: c23afa76-c1d0-4980-ab00-9c041409b034
Content-Type: application/json
Accept: application/json, text/event-stream
Mcp-Session-Id: aTkSyQiJwOoCAAB9
Content-Length: 111

{"jsonrpc": "2.0", "id": 5, "method": "tools/call", "params": {"name": "echo", "arguments": {"message": "aa"}}}
HTTP/1.1 200 OK
Server: njet/4.0.0.0
Date: Wed, 10 Dec 2025 06:27:33 GMT
Content-Type: text/event-stream
Transfer-Encoding: chunked
Connection: keep-alive
Cache-Control: no-store, no-transform
Connection: keep-alive

data:{"jsonrpc":"2.0","result":{"content":[{"text":"Tool echo: aa","type":"text"}]},"id":5}


POST /mcp HTTP/1.1
Host: 192.168.40.211:18080
Accept-Encoding: gzip, deflate
Connection: keep-alive
User-Agent: python-httpx/0.27.2
uuid: c23afa76-c1d0-4980-ab00-9c041409b034
Content-Type: application/json
Accept: application/json, text/event-stream
Mcp-Session-Id: aTkSyQiJwOoCAAB9
Content-Length: 111

{"jsonrpc": "2.0", "id": 6, "method": "tools/call", "params": {"name": "echo", "arguments": {"message": "aa"}}}
HTTP/1.1 200 OK
Server: njet/4.0.0.0
Date: Wed, 10 Dec 2025 06:27:36 GMT
Content-Type: text/event-stream
Transfer-Encoding: chunked
Connection: keep-alive
Cache-Control: no-store, no-transform
Connection: keep-alive

data:{"jsonrpc":"2.0","result":{"content":[{"text":"Tool echo: aa","type":"text"}]},"id":6}


另外一种方法是自己调用一下 dify 的 passport 接口，将 user_id 传给 dify. 待验证。
